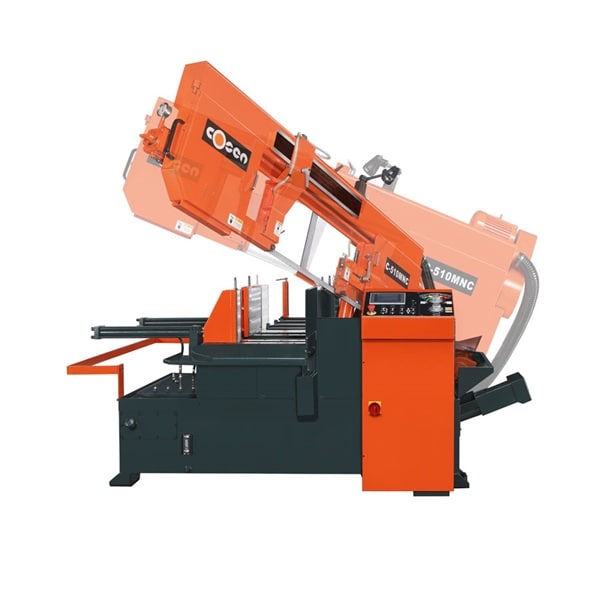

Fully Programmable Automatic Miter Cutting Bandsaw C-510MNC

Cosen’s C-510MNC is a high production fully programmable automatic miter-cutting bandsaw, which incorporates a massive base, sturdy saw frame, a 5HP drive motor, 34 mm wide blade and a user-friendly control station. The SNC-100 technology is programmable up to 100 different jobs including quantity and length of cut with Automatic Multiple Indexing & Automatic Kerf Compensation. Cutting information such as blade speed, blade life and error message is clearly displayed for ease of use.

Get a Quote

Categories: Fully Automatic

ITEMS	COSEN C-510MNC
Angle	0°	+45°	+60°
Capacity Round	360 mm (14”)	360 mm (14”)	230 mm (9”)
Capacity Rectangle (HxW)	330x510mm (13”x20”)	330x330mm (13″x13″)	230x230mm (9″x9″)
Blade Speed	15-80 m/min (49-262fpm)
Blade Size (LxWxT)	4900 x 34 x 1.1 mm (192.9″x 1.3″x 0.04″)
Blade Motor	5 HP (3.75 kW)
Hydraulic Motor	1 HP (0.75 kW)
Coolant Motor	1/8 HP (0.09 kW)
Vise Control method	Hydraulic Full Stroke Cylinder
Workbed Height	795 mm (31.3″)
Gross Weight	2135 kgs (4707 lbs)
Floor Space (LxWxH)	2561 x 3263 x 2170 (100.8″ x 128.5″ x 85.4″)

*We reserve the right to modify the specification and design of machine without prior notice.

Built in work light
Additional flushing hose for cleaning
Bi-metal saw blade
Tool Box with tools, leveling pads and an additional wire brush
Operation & parts manual
Optional:
Hydraulic Chip Conveyor
Vise Pressure regulator
Hydraulic Nesting Fixture

Download Brochure (attach_url-A00086.pdf)
