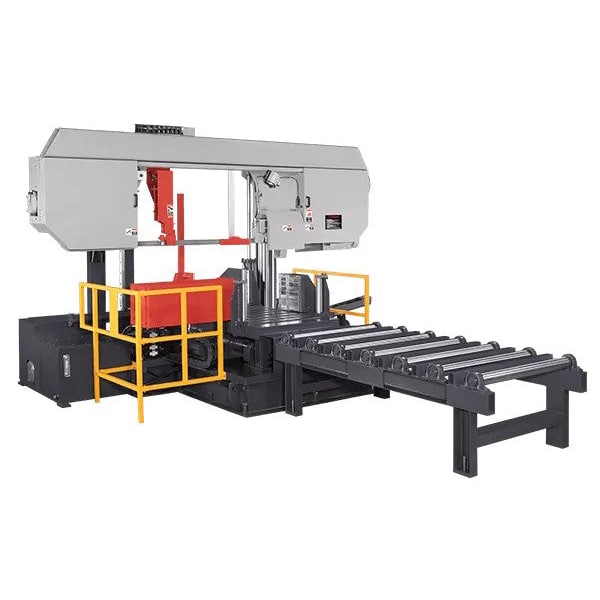

Column Type Fully Automatic Band Saws Machine (Heavy Duty) H-7062NC

Actual Power Model: H-7062HANC is a heavy duty double column fully automatic band saw machine. The double column type band saw machine are more stable and accurate for cutting. This machine come with NC control system with simple operation design, for quick and efficient cutting operations. The machine are suitable for mass production

Categories:, ,

Specification

ITEMS H-7062HANC
Capacity ● 620 mm

■ 700 x 620mm
Bundle Cutting (W x H) N/A
Blade Speed 15~100 M/min (inverter)
Blade Size L7600 x W54 x T1.6mm
Motor Blade Drive 7.5 KW 10 HP
Hydraulic Pump 2.2 KW 3 HP
Coolant Pump 0.2 KW 1/4 HP
Hydraulic Oil Capacity 100 L
Cutting Oil Capacity 140 L
Table Height 650 mm
Material Length of Single Feed 500 mm
Net Height 7000 kgs
Floor Space L2300 x W3800 x H2100mm

*We reserve the right to modify the specification and design of machine without prior notice.

Equipment

  •  NC CONTROL SYSTEM.
  •  Shuttle type automatic feed.
  •  Hydraulic clamping vise with full stroke.
  •  Hydraulic carbide blade guide system.
  •  Power driven wire brush.
  •  Infinitely variable speed control by inverter.
  •  Hydraulic blade tension.
  •  Idler wheel motion detector with blade stalling.
  •  Floating shuttle vise.
  •  Auxiliary lifting cylinder.
  •  P.L.C. control for all electric and hydraulic function.
  •  Split front vise.
  •  Check device of saw blade breakage.
  •  Automatic work height control and fast approach.
  •  Automatic chip conveyor.
  •  Flushing hose for machine cleaning.
  •  Work light.
  •  One M42 Bi-metal saw blade.
  •  One set of tools and tool box.

    Optional :
  •  Roller stock table 2m long.
