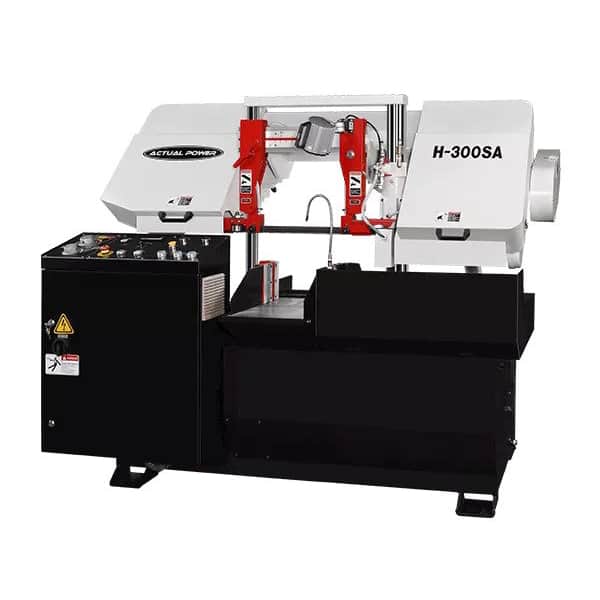

Column Type Semi-Automatic Band Saws Machine H-300SA

Actual Power Model: H-300SA is a double column semi-automatic band saw machine. The double column type band saw machine are more stable and accurate for cutting. The machine are suitable for mass production

Categories:, ,

Specification

ITEMS H-300SA
Capacity ● 300 mm

■ 300 x 300mm
Min Cutting Capacity  □W10 x H10 mm
○10 mm
Blade Speed 20~100 M/min (inverter)
Blade Size L3920 x W34 x T1.3mm
Motor Blade Drive 3.7  KW 5 HP
Hydraulic Pump 0.75  KW 1 HP
Coolant Pump 0.1  KW 1/8 HP
Hydraulic Oil Capacity 60 L
Cutting Oil Capacity 70 L
Table Height 780 mm
Net Weight 1300 kgs
Floor Space L1200 x W2000 x H1700mm

 *We reserve the right to modify the specification and design of machine without prior notice.

Equipment

  •  Hydraulic tension device of saw blade.
  •  Hydraulic clamping vise
  •  Check device of saw blade breaking.
  •  Variable speed inverter + LED display of blade speed
  •  Power driven blade brush.
  •  3pcs.carbide blade guide system.
  •  Flushing gun for machine cleaning.
  •  Automatic chip conveyor.
  •  One piece of Bi-Metal Saw blade.
  •  One set of Tool box.

    Optional:
  • 2M Roller Table
