Specification
- Structural steel
- Roll-formed section steels
- Bundled small diameter materials
Amada Protector HSS BI-Metal Blade
The PROTECTOR was designed for preventing tooth chipping when cutting structural steels. Featuring robust tooth geometry, highly effective against tooth loss due to excessive vibration and aggressive feed rates, provides superior cutting efficiency on structural steels.
The PROTECTOR II improved from PROTECTOR. Excellent in wear resistance edge material M42 cobalt high-speed steel adopted.
Features
Protector tooth shape
– Prevent tooth from chipping
Increased tooth tip strength
– To endure the impact during cutting
Wide set (WS specification)
– Reduce the blade pinching
Available sizes & pitch

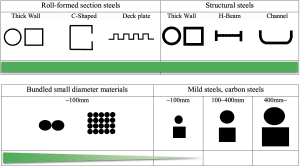

- Band Saw Blades Protector Applicability by Materials
PROTECTOR Blade Width (mm)
Blade Thickness (mm)
Pitch (TPI) 2/3 3/4 4/6 27 0.9mm 34 1.1mm ☑️ 41 1.3mm WS☑️ ☑️ 54 1.6mm WS☑️ WS☑️ 67 1.6mm WS☑️ WS☑️ * WS: Wide set specification available (helps eliminate blade pinching).
*Please contact us if you inquiry for others sizes and pitches
